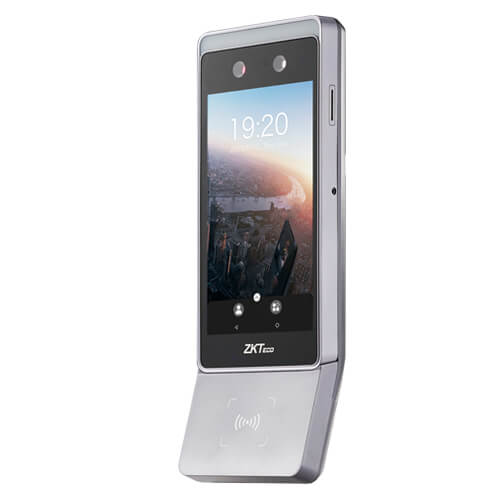

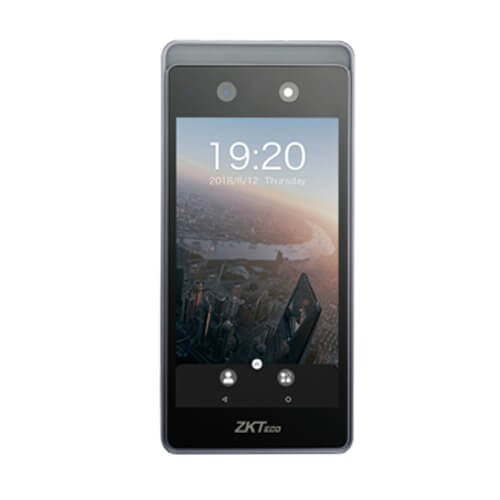

ZKTeco Horus E1-RFID blends speed, security, and design in one sleek facial recognition terminal — backed by wireless flexibility and RFID functionality. It's ideal for businesses seeking a modern, hygienic, and mobile-ready access solution.

Inspired by the mythical Egyptian “all-seeing eye,” the ZKTeco Horus E1-RFID represents a new generation in biometric access control and time attendance. Engineered with visible light facial recognition technology, this ultra-compact device delivers lightning-fast, high-accuracy identification in a design as slim as an iPhone XS Max — making it one of the most advanced yet space-efficient terminals on the market today.

Built on Android 8.1, the Horus E1-RFID combines intelligent biometric algorithms with enterprise-grade hardware. It supports multiple communication protocols, including Wi-Fi (2.4GHz & 5GHz), Bluetooth 4.0, 3G/4G, and TCP/IP, ensuring seamless integration into virtually any network environment.

Core Features:

Facial Recognition + RFID: Dual-authentication for secure, touchless access

Face Capacity: 6,000 (standard) / 10,000 (optional)

RFID Card Capacity: 10,000 (ID/MIFARE supported)

Recognition Distance: Up to 3 meters—ideal for contactless entry points

Camera: Dual 2MP for visible light recognition with live detection

Operating System: Android 8.1 for enhanced customization and UI responsiveness

Display: 5” IPS Touch LCD (720 × 1280 resolution)

Hardware & Performance:

CPU: 1.5GHz Quad-Core

Memory: 2GB RAM / 16GB ROM

Speaker: 90 dB output (within 10cm)

Microphone: High-clarity voice pickup within 1 meter

Bluetooth 4.0 & 4G Wireless Support

Wi-Fi: Dual-band (2.4GHz / 5GHz), 802.11 a/b/g/n

TCP/IP: 10/100 Mbps for reliable network transmission

Access Control Options:

Compatible with DM10 Access Control Module (optional)

Supports door sensors, relay outputs, exit buttons, and alarms when integrated

Can be used for both standalone and networked security systems



Environmental & Build Specs:

Operating Temperature: 0°C to 50°C

Power Supply: 12V DC, 2A

Dimensions: 205.33mm (H) × 74mm (W) × 17.7mm (D)

Mounting: Compact wall-mount design suitable for narrow entry points



Perfect For:

Smart Offices & Corporate Lobbies

Hospitals & Clinics

Co-Working Spaces

Educational Institutions

Retail Chains & Hospitality Venues
