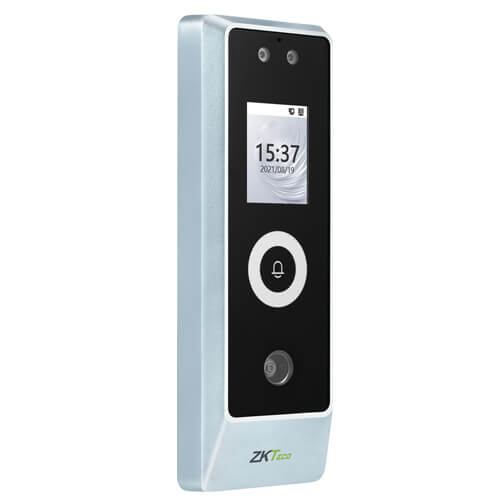

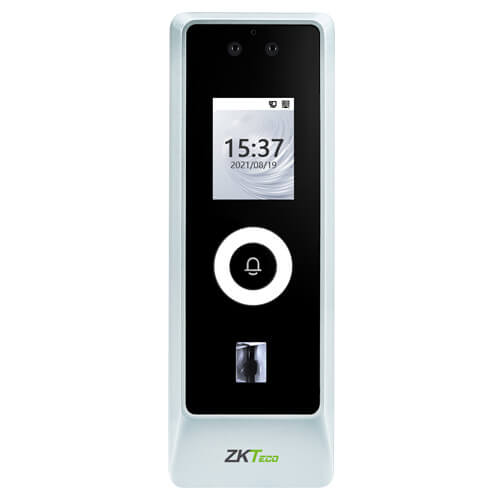

ZKTeco ProMA Series : The perfect blend of security, hygiene, durability, and flexibility - all in a sleek, compact unit ready for outdoor deployment.

Built for the harshest environments and highest security demands, the ZKTeco ProMA Series is a next-generation multi-biometric access control solution designed to combine strength, speed, and versatility in one ultra-compact unit. Housed in a vandal-resistant aluminum alloy casing (IK07) and certified IP66 water and dust-proof, the ProMA Series is engineered for reliable outdoor performance in industrial zones, construction sites, secure buildings, and high-traffic entry points.

The series features three models:

ProMA-QR: Facial recognition + QR code + RFID

ProMA-RF: Facial recognition + RFID

ProMA: Facial + Fingerprint + RFID

Each model supports optional touchless palm recognition, combining advanced security with contactless hygiene compliance.



Authentication Capacities:

Fingerprint Templates: 10,000 (ProMA only)

Face Templates: 30,000 (expandable to 50,000 – ProMA-QR & ProMA-RF only)

Palm Templates: 5,000 (customized)

RFID Cards: Up to 100,000 (optional for ProMA-QR & ProMA-RF)

Transaction Logs: 500,000 events



Hardware & Performance:

Quad-Core 1.0GHz CPU

1GB RAM / 8GB Flash

2” Color TFT Display

Hi-Fi Voice Prompts, LED Indicators, Tamper Switch Alarm

Authentication Speed:

Facial: ≤0.3s

Palm: ≤0.35s

RFID: ≤0.2s

QR Code Reader: Available on ProMA-QR (supports PDF417, Aztec, Data Matrix, etc.)

Optional: HID Prox/iClass, PoE, scramble QR, BLE/NFC (coming soon)



Security & Communication:

End-to-End AES-256 Encrypted Communication (TLS 1.2)

Supports OSDP v2.1.7 over RS485 (secured channel)

Interfaces: TCP/IP, RS485, Wiegand In/Out, Door Sensor, Exit Button, Alarm Output, Doorbell Output

Full Integration with:

ZKBio CVSecurity & ZKBioTalk Software

ZSmart Mobile App

ONVIF Profile-S/T/G/Q/A for video intercom compatibility

SIP Protocol for voice intercom (VT07-B01)



Ideal Use Cases:

Outdoor Entry Gates

Industrial Warehouses

Construction Sites

Military Bases

Utility Plants

Secure Government Facilities



Environmental & Build Quality:

Operating Temp: -26°C to 55°C

Storage Temp: -30°C to 65°C

Humidity: Up to 93% RH (non-condensing)

Housing: Heavy-duty aluminum alloy

Dimensions: 68.7mm (W) × 194.7mm (H) × 28.3mm (D)

Power Supply: 12V DC | Current Draw: <550mA



Key Benefits:

Weatherproof & Vandalproof – Built for durability

High-Capacity Biometric Database – Ideal for high-footfall locations

Lightning-Fast Recognition – Unlocks in under a second

Fully Contactless Options – Ideal for post-COVID compliance

Flexible Authentication Modes – Face, Fingerprint, RFID, Palm, QR
