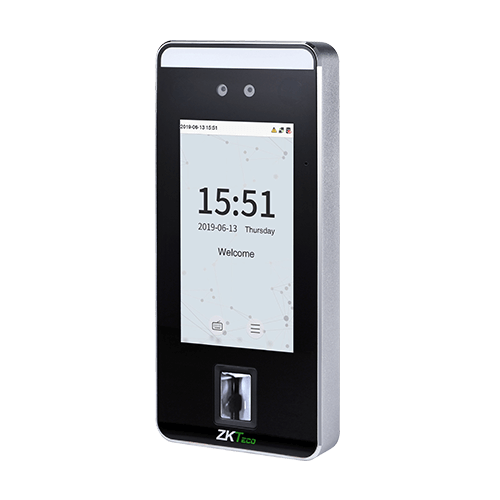

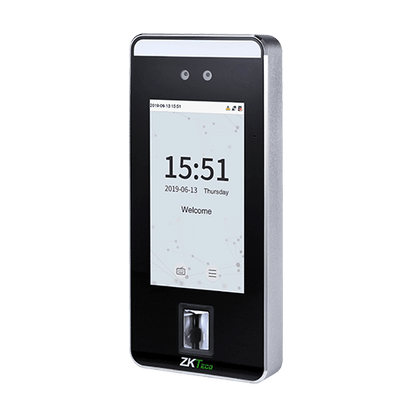

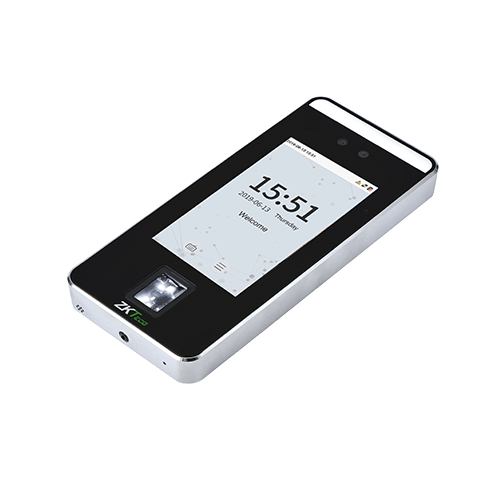

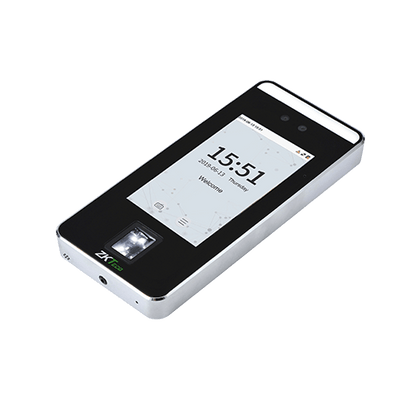

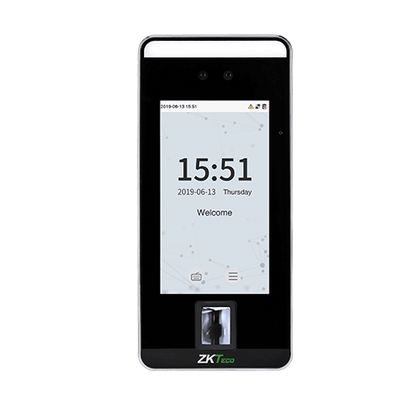

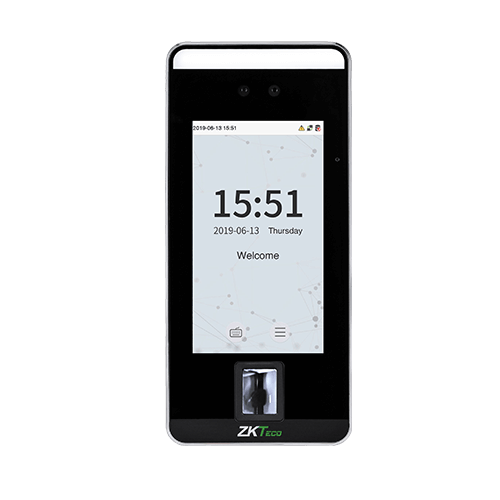

ZKTeco SpeedFace-V5L Series : A future-proof, hygienic, and multi-biometric solution for enterprises looking to balance security, speed, and safety - all in one powerful terminal.

The ZKTeco SpeedFace-V5L Series is a cutting-edge Linux-based hybrid biometric terminal, engineered to deliver unmatched touchless security for access control and time attendance systems. Designed with AI-powered facial, fingerprint, and palm recognition algorithms, this device ensures fast, accurate, and hygienic verification for high-traffic environments.

Whether you’re managing secure entry at corporate offices, factories, healthcare centers, or transport hubs, the SpeedFace-V5L series offers exceptional versatility through its multi-biometric support, dynamic QR code integration, and advanced anti-spoofing technology.

Available Models:

SpeedFace-V5L: Standard version with face, fingerprint, palm (optional), card & password

SpeedFace-V5L [TD]: Includes body temperature detection & mask detection

SpeedFace-V5L [TI]: Enhanced version with improved thermal imaging & infection control

Key Features & Specs:

Authentication Methods:

Facial Recognition: 6,000 (standard), up to 10,000 (optional)

Fingerprint Recognition: 6,000 (standard), up to 10,000 (optional)

Palm Recognition: 3,000 (customized) – Palm shape + palm vein + palm print

RFID Card: Up to 10,000 (ID, IC, CEPAS optional)

Password Access via virtual keypad

QR Code Scanning: Supports static & dynamic codes, PDF417, Data Matrix, Aztec

Hardware Highlights:

Display: 5-inch ISP Color LCD (720×1280 resolution)

Camera: 2MP WDR Low Light with supplement LED light

CPU: 1GHz Dual-Core | Memory: 1GB RAM + 8GB ROM

Fingerprint Sensor: Z-ID sensor

Touchless Recognition Distance:

Face: 1–100 cm

Palm: up to 50 cm

Recognition Speed:

Facial Recognition: <1 second

Fingerprint: <0.3 seconds

Palm: <0.35 seconds

Anti-Spoofing Technology:

Detects fake images, B/W/color print attacks, video replays, and 3D masks

Accurate and secure in real-world conditions, including users wearing face masks

Connectivity & Access Control:

Communication: TCP/IP, RS485, Wiegand In/Out

Inputs/Outputs: Door Sensor, Exit Button, Alarm, Doorbell, Auxiliary I/O

Cloud & App Integration:

Software: ZKBio CVAccess

Mobile Apps: ZKBio ZLink, ZSmart

Cloud Service: ZKBio ZLink Web

ONVIF & SIP Protocol: For video intercom & NVR connectivity

Environmental & Build Details:

Operating Temp: -10°C to 45°C

Humidity: 10%–90% RH

Dimensions: 91.93mm × 202.93mm × 21.5mm

Installation: Wall mount (compatible with Asian and Single Gang Boxes)

Certifications: ISO14001, ISO9001, CE, FCC

Net Weight: 0.6 kg | Gross Weight: 1.3 kg

Power Supply: DC 12V, 3A

Perfect For:

Hospitals & Clinics

Smart Offices

Commercial Buildings

Factories & Industrial Zones

Educational Institutions

Government Facilities
